Harvia Cilindro PC80E Sauna Heater Package

Harvia Cilindro Series 8kW Sauna Heater Package

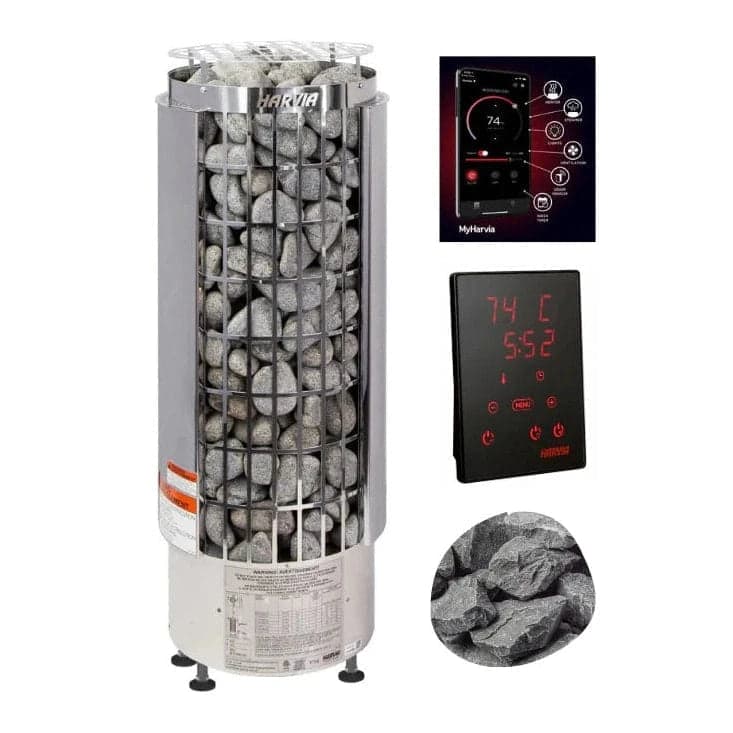

This package includes everything you need to run your sauna:

• Harvia Cilindro PC80E 240V/1PH Sauna Heater x 1
• Harvia Xenio CX45 Sauna Control Package x 1
• Harvia AC3000 Special Sauna Stones x 5
• Optionally Harvia Xenio WiFi Controller x 1

The Harvia Cilindro PC80E Sauna Heater Package is available in both 240V single phase and 208V 3 phase. If you require the 208V 3 phase option, please be sure to contact us. The main difference between the PC80 and PC80E models is that the E version must be controlled using an external controller panel. This allows for more precise and convenient control over the sauna environment. Additionally, you have the option to purchase an add-on for controlling the sauna through a phone app. With a huge stone capacity of 200 lbs, the PC80E can handle a massive amount of steam. The outer shell of the sauna heater is grate-like, giving you the ability to adjust the nature of the steam depending on where you pour the water. For a softer steam, pour the water on the side, and for a sharper and more powerful steam, pour the water directly on top of the stones.

Features

Harvia Cilindro PC80E Sauna Heater:

• Side-wall or corner of room install
• Stainless Steel construction
• 8kW
• For sauna rooms from 141 to 431 cu. ft.
• Requires a minimum of 200lbs of stones (5 box-AC3000)
  • Please note that each natural stone is unique in shape and size. We recommend purchasing an additional box of sauna stones to allow you to choose the highest quality of stone for fit, form, and function.
• Stainless Steel elements
• Direct rock-to-heating element contact
• Industrial grade, serviceable heating elements
• Designed, engineered, and made in Finland
• Dimensions: 14"W (355mm) x 13"D (330mm) x 40"H (1016mm)

Harvia Xenio CX45 Sauna Control Package:

• For up to 17kw heaters (U1) and 15kw heaters (U3)
• Works with Cilindro, Club and Virta series heaters (Not Combi)
• Contols operating time
• Controls temperature
• Controls lighting
• Controls fan
• Can be wall-mounted or surface embedded
• 3.4"W x 1"D x 4.4"H

Optional Harvia Xenio WiFi Remote Control:

• Replacement panel offering WIFI upgrade for Xenio control systems
• Easy installation
• Access to MyHarvia application
• Wall installations
• Dimensions: 3.34"W (84mm) x 0.9"D (22mm) x 4.3"H (109mm)

About MyHarvia Application

• Control lighting
• Control of fan
• On-time feature
• Timed start feature
• Week Clock
• Safety device option
• Time zone selection
• Daylight saving selection
• Temperature adjustment
• Humidity adjustment
• Application not available in all countries
• Can be connected to unlimited amount of devices
• Access to control panel updates for the latest features and improved functions

Harvia AC3000 Sauna Stones:

• Special stones, that radiate heat effectively, produce even steam and can handle the sauna environment.
• Designed to use with Cilindro sauna heaters

Specifications

Model	Cilindro PC80E
Kilowatt Rating (KW)	8 KW
Primary Fuel	Electric
Minimum Adjusted Cubic Feet	141
Maximum Adjusted Cubic Feet	431
Voltage	240
Phase	1
Nominal Amps	33.4 Amps
Heater Weight	37.5 lbs
Shipping Weight with Sauna Stones	257.5 lbs
Width In Inches	14" (355mm)
Depth In Inches	13" (330mm)
Height In Inches	40" (1016mm)

Minimum Safety Clearances

Manuals

Harvia Cilindro Manuals:

Installation and Operation Manual

Stone Requirements

Warranty

Harvia Elements

Harvia Xenio CX45 Manuals:

Xenio Installation and Operations Manual

Harvia Xenio Wifi Manuals:

Installation and Operation Manual

Data Sheet

Control Compatibility Specs
