Mr. Steam CT 9kW Commercial Steam Generator Package

Mr.Steam CT9E Commercial Steam Shower Generator Package: Compact Power for Day Spas

Elevate your day spa experience with the Mr.Steam CT9E Commercial Steam Shower Generator Package, designed to deliver reliable steam performance for rooms up to 257 adjusted cubic feet (ACF). This compact yet powerful 9kW system offers cutting-edge technology and thoughtful features, ensuring every steam session is seamless and luxurious.

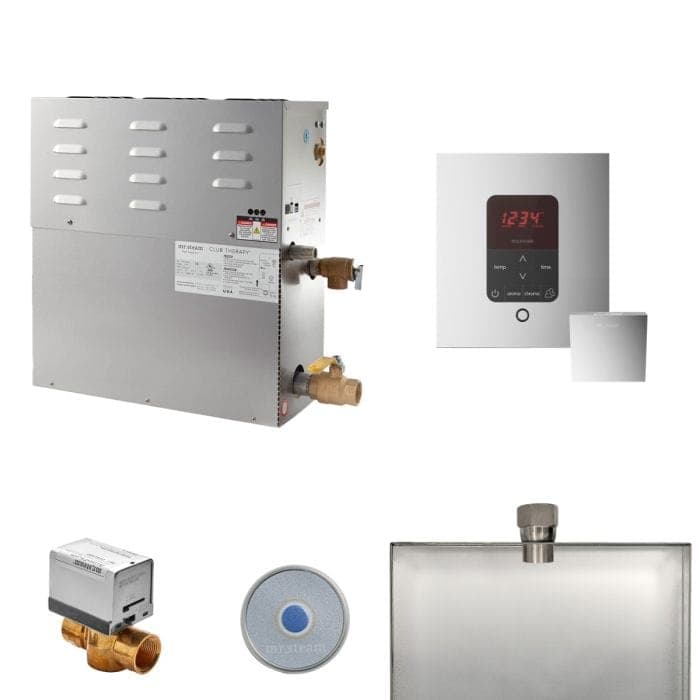

What’s Included in the Package:

• 9kW Steam Generator: Provides consistent steam output to create a soothing environment.
• iTempoPlus Control: Allows easy management of steam duration, temperature, and on/off settings, installable inside or outside the steam room.
• AromaSteam Steamhead: Enhances the experience with even steam dispersion and integrated aromatherapy.
• CT SteamStop Control: Offers bathers the convenience of turning the generator on or off.
• AutoFlush System: Automatically drains the tank to reduce calcification and extend the life of the unit.
• Condensation Pan: Manages moisture to protect your steam room from excess condensation.

Why Choose the CT9E Generator?

• Express Steam Technology: A built-in thermostat keeps water preheated, ensuring your steam room is ready when you are.
• Eco-Friendly Design: With only 1.2 gallons of water used during a 20-minute session, this generator is both economical and environmentally conscious.
• Exceptional Quality: Proudly crafted in the USA, the CT9E is backed by a limited lifetime warranty and offers full serviceability for long-lasting performance.

Perfect for resorts or day spas, the CT9E Generator Package provides a complete steam solution with advanced technology, effortless controls, and unmatched durability.

Features

CT Day Spa 9kW Generator

• Industrial grade and serviceable heating element
• Unitized stainless steel reservoir
• Durable electronic components
• Round mini-DIN control connections
• Electronic water-level system
• Express steam is a built-in thermostat that maintains water temperature to start steaming more quickly
• MSTS temperature sensor allows for temperature adjustment from remote control location
• Low voltage safety control circuits
• Built-in 24V circuits
• ASME safety valve and full port drain valve
• UL/cUL listed

iTempoPlus Control

• Provides control of the steamroom by the owner/operator from outside the steamroom
• Programmable temperature and time settings allow the owner/operator to customize and enhance the steam bathing experience for each bather
• Standard with digital display and ergonomic soft-touch keypad with Chroma, Aroma, and programmable memory settings
• Quick-responding temperature sensor maintains temperature within the steamroom
• Solid brass cover for durable finish and quality
• Digital readout display
• Preset 60-minute time cycle
• On/Off and pause modes
• Soft touch keypad
• Inside or outside the steam/shower enclosure installation
• Low voltage operation
• Displays troubleshooting codes
• Square design
• Polished Chrome finish

AromaSteam Steamhead

• Designed to maintain cooler surface temperatures with improved steam flow and quieter infusion of aromatic oil into the steam for an enhanced steam room experience
• Solid brass for superior performance and finish
• Quieter operation
• Low profile and sleek design

CT SteamStop Control

• On/Off operation
• Low profile
• Inside the steam/shower enclosure installation
• Low voltage operation
• Polished Chrome Trim finish

AutoFlush System

• Automatically and electronically drains generator after use and refills tank with fresh water for “Clean Steam…Every time!”
• Improves performance and lengthens system life
• Efficiently removes accumulated sediment
• Simple plug-and-play connection
• Full 1″ port design
• 24V AC motorized actuation, 50/60 Hz, 6.5 Watts, Class 2
• Two position, normally open
• Brass valve body with 1/2″ NPT connections
• 2-pin integral electrical lead with “plug-in” electrical connection
• Gravity drain

Condensation Pan

• Galvanized sheet metal construction
• Integral 3/4″ drain copper fitting

Includes

• CT Day Spa 9kW Generator
• iTempoPlus Control in Polished Chrome (Standard)
• Aroma Designer Steamhead in Polished Chrome (Standard)
• CT SteamStop On/Off Control (Chrome Trim Only)
• AutoFlush System
• Condensation Pan
• Express Steam (Factory Installed)
• MSTS In-Room Temperature Sensor, 30′ Long
• Mini-DIN Control Cable, 30′ Long
• 3-Pin Control Cable, 30′ Long
• RTV Silicone Sealant,.5 oz Tube
• Installation and Operation Manual
• UL/cUL Listed and CE Approved
• Limited Warranty

Specifications

Model	CT9EC1-PC
Kilowatt Rating	9kW
Minimum Adjusted Cubic Feet	108
Maximum Adjusted Cubic Feet	257
Water Supply Connection	3/8″ NPT
Generator Steam Line Connection	1/2″ NPT
Steam Head Connection	1/2″ NPT
Drain Connection	1″ NPT
Safety Relief Valve Connection	3/4″ NPT
Safety Relief Valve PSIG	15 PSIG
Length	17″
Depth	7 7/8″
Height	18 1/2″
Shipping Weight	60 lbs
iTempoPlus Control
Length	4 1/2″
Depth	1 1/4″
Height	5″
AromaSteam Steamhead
Length	3″
Depth	7/8″
Height	2 3/4″
CT SteamStop Control
Diameter	1 1/2″
Depth	1 7/8″
AutoFlush System
Length	6 3/8″
Depth	2 3/8″
Height	6 3/8″
Condensation Pan
Length	9″
Depth	1 1/2″
Height	25″
